Features:

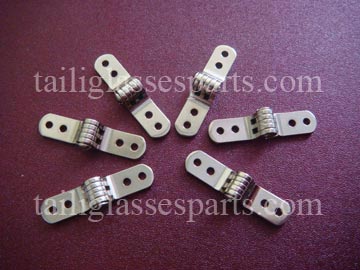

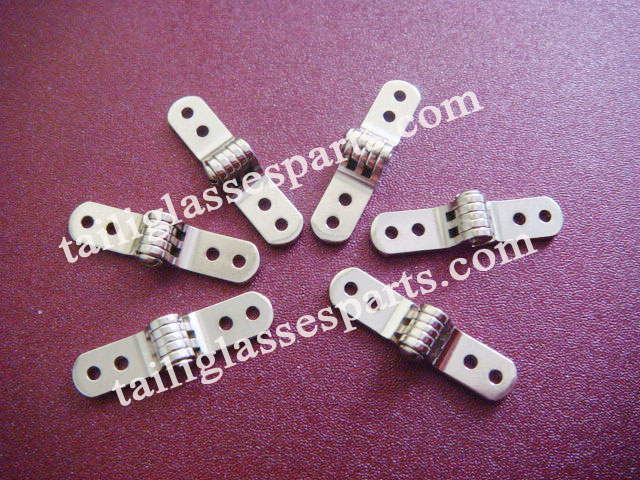

This hinge is almost suitable for all kinds of eyeglasses,such as wood sunglasses,plastic sunglasses,aluminum frame,horn eyeglasses,bamboo sunglasses etc,as its installing way is by riveting instead of soldering,so suitable for any frame which has the soldering problem;
Ways of installing hinges onto glasses frames:
by self-tapping screws: 4.2mm shaft length, 6.0mm shaft length available for option;
by single rivets: 5.0mm, 6.0mm, 7.0mm shaft length available;
by double rivets: 5.5mm, 6.0mm,7.0mm double rivets available for choice;
These screws,single rivets or double rivets for installing are matched completely free for retail orders as long as you make the option above.
Size:
4.0mm width, 4.0mm height, 18.2mm total length after assembled (front part:9.1mm + temple part:9.1mm);

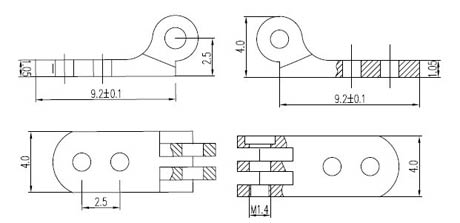

Drawing of TH-22:
TH-26 short (4.0mm width)
TH-24(5.0 width)
TH-23(6.0 width)
2. 13 Models(TH-21-TH-35), 2 pairs each,26 pairs totally.
3. size: 3.0-8.0mm; with screws for installing (onto frames)matched free.
4. one great universal hinges kit for all kinds of eyeglass frames,metal,plastic,horn,wood etc,specially nice for those who had soldering problem,
5.specially recommend for eyeglass designer,new starters etc.
