Ship by express in 2 working days,5-7 days to be received.
Please ask for one paypal invoice individually if air mail is prefered, 10USD,15-35 days to be received.

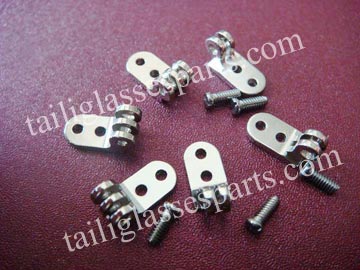

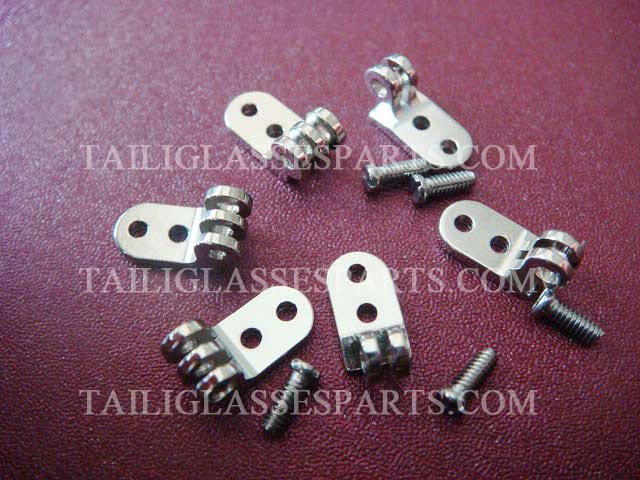

Features:
This hinge is almost suitable for all kinds of eyeglasses,such as wood sunglasses,plastic sunglasses,aluminum frame,horn eyeglasses,bamboo sunglasses etc,as its installing way is by riveting and screwing instead of soldering,so suitable for any frame which has the soldering problem;
Material: high nickel;
Installing way:
by self-tapping screws: 4.2mm shaft length; 6.0mm shaft length available;
by single rivets: 5.0mm,6.0mm,7.0mm shaft length available;
by double rivets: 5.5mm, 6.0mm,7.0mm length available;
Please note these spare parts for installing are matched completely free as per your option for retail orders.
Size:
wideth:4.0mm ;
height:4.0mm ; 15.5mm overall length after assembled.

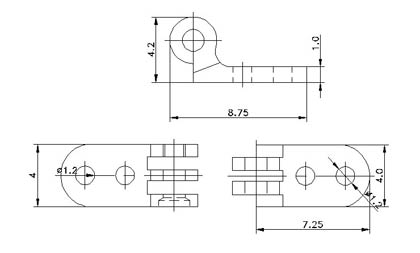

drawing of TH-26:
TH-22 (4.0mm width)
TH-24(5.0mm width)
TH-23(6.0mm width)
2. 13 types(TH-21-TH-35),5 pairs each,65 pairs totally.
3. size: 3.0-8.0mm; with screws for installing onto frames matched free.
4. a great universal hinges kit for all kinds of eyeglass,specially recommend for designers and new makers.
