Features:

It is mostly used on aluminum glasses frames,but could also be used on wooden glasses frame if your frame has one bended front or endpiece which are made together with front.

Material: high nickel;
Size:
width: 3.8mm wide spring hinge,with 5.5mm bottom.
length: front hinge: 9.75mm, temple hinge:17.25mm; 27.5mm total after assembled together.
height:4.9mm
screws: 3.0mm shaft screws matching free.

drawing of TSH-06:

How to install:
Firstly,please make recess on your frames,secondly push the hinge into recess,both temples and fronts, use the screws to lock them.If for wooden frames,you may need glue together.
If you are afraid the screws are not secure enough for fastenning,please consider to add these spaceres for matching use,

Order here (excluding the screws as you've chosen above):
http://www.tailiglassesparts.com/screws-buy/stainless-steel-spacers-M2.35.html;
http://www.tailiglassesparts.com/screws-buy/stainless-steel-spacers-M2.85.html;

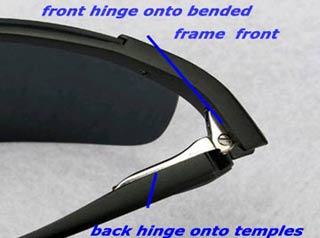

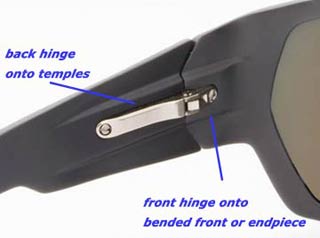

Installing effect picture:
