Ship by express in 2 working days, 5-7 days to be received.
Please ask for one paypal invoice individually if air mail is prefered, 10USD,15-35 days to be received.

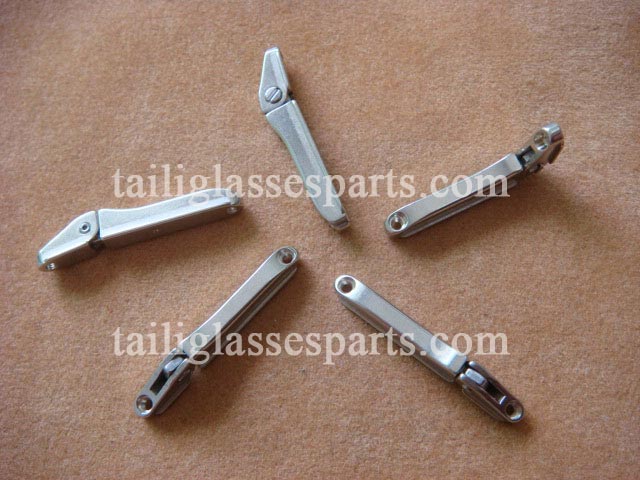

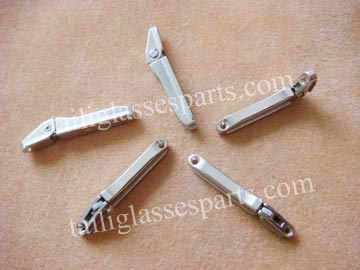

Features:
It is mostly used on aluminum frames,but it could also be used on wrapped wood glasses.
Material: high nickel;
stop degree: 85 degree(+4 degree/-0 degree tolerance);
Screws: 3.0mm,4.0mm,5.3mm,6.0mm shaft length available;
Size: as per drawing below;

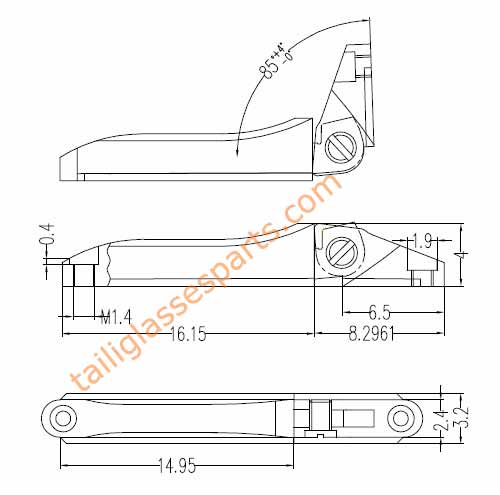

drawing:
How to install:
Firstly,please make recess on your frames,secondly push the hinge into recess,both temples and fronts, use the screws to lock them.If for wooden frames,you may need glue together.
If you are afraid the screws are not secure enough for fastenning,please consider to add these spaceres for matching use,
Order here (excluding the screws as you've chosen above):
http://www.tailiglassesparts.com/screws-buy/stainless-steel-spacers-M2.35.html;
http://www.tailiglassesparts.com/screws-buy/stainless-steel-spacers-M2.85.html;

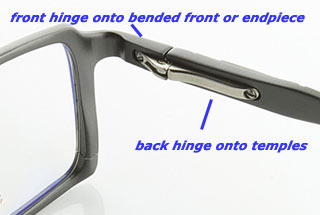

Installing effect:
.jpg)
TSH-02(3.0mm spring)
TSH-04(5.0mm springs)
TSH-06(3.8mm springs)
12 types of great spring hinges for wooden frames2. the most complete and useful spring hinges kit so far for wooden glasses,including 12 types (TSH-05,TSH-08,TSH-09,TSH-10,TSH-51,TSH-52,TSH-53,TSH-55,TSH-56,TSH-59,TSH-61,TSH-62),2 pairs each,24 pairs totally.screws necessary for installing are enclosed free for every hinge.
3. great spring hinges kit for wood frames,specially recommend to wood frames designer,or new makers.
