Ship by express in 2 working days;
5-7 days to be received;
Please ask for one paypal invoice individually if air mail is prefered, 10USD,15-35 days to be received.

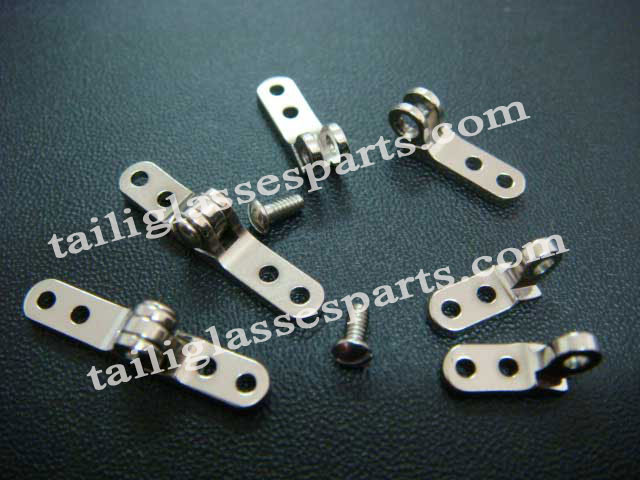

Features:
This hinge is suitable for any frame which exists soldering problem,such as wood sunglasses,plastic sunglasses,aluminum frame,horn eyeglasses,bamboo sunglasses etc,as its installing way is by riveting or screwing instead of soldering.
Material: high nickel with shinny nickel color plating
Ways of installing hinges onto frames:
by self-tapping screws: 4.2mm shaft length, 6.0mm shaft length available for option;
by single rivets: 5.0mm, 6.0mm, 7.0mm shaft length available;
by double rivets: 5.5mm, 6.0mm,7.0mm double rivets available for choice;
Please note these screws or rivets are matched completely free as per your options for retail orders.
Size:
3.0mm width, 4.0mm total height, 16.5mm overall length after assembled together;

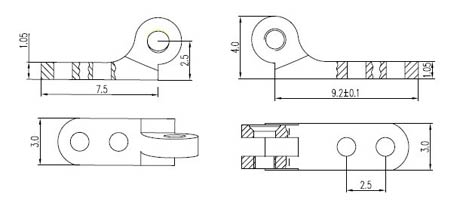

Drawing of TH-21:
TH-22(4.0mm wide)
TH-24(5.0mm wide)
TH-26 (4.0mm wide)
TH-27(6.0mm wide)
2. 13 Models(TH-21-TH-35), 2 pairs each,26 pairs totally.
3. size: 3.0-8.0mm; with screws for installing (onto frames)matched free.
4. one great universal hinges kit for all kinds of eyeglass frames,metal,plastic,horn,wood etc,specially nice for those who had soldering problem,
5.specially recommend for eyeglass designer,new starters etc.
